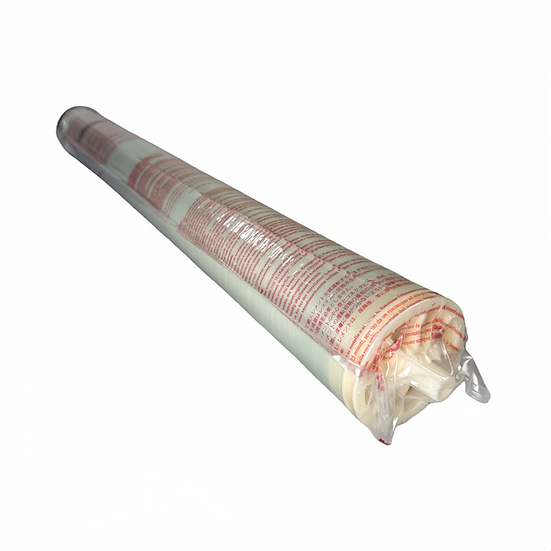

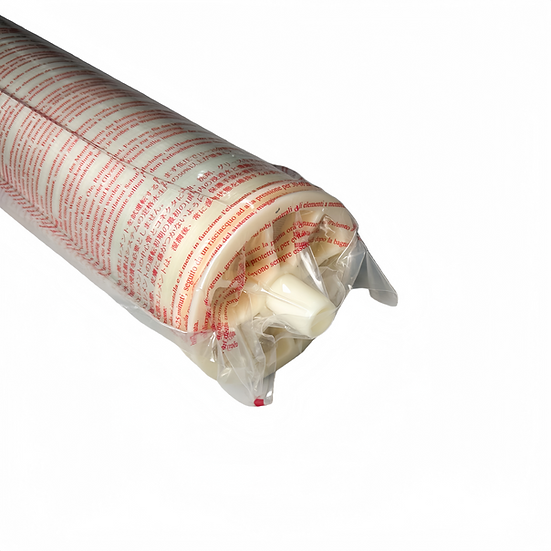

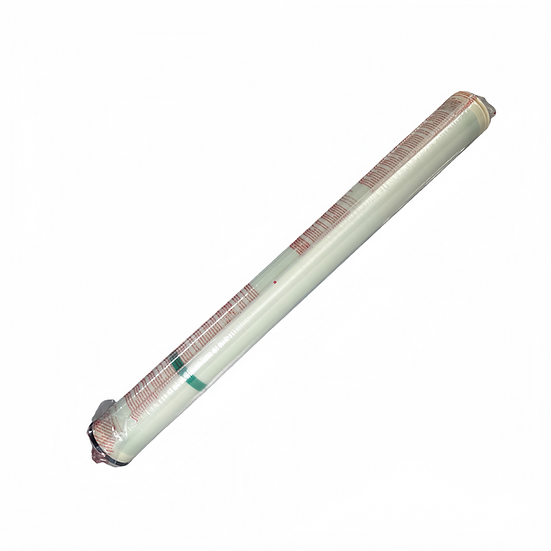

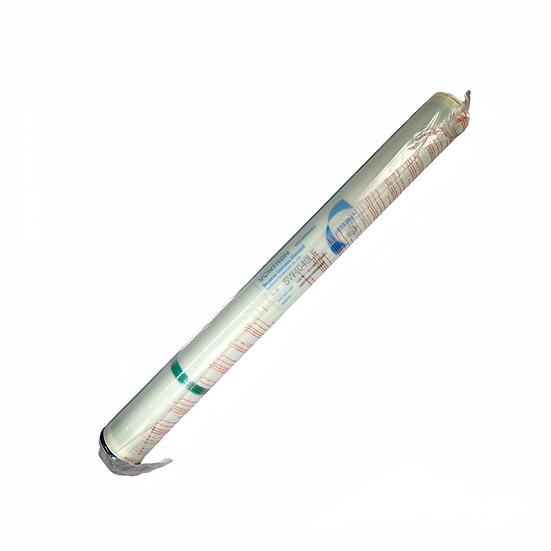

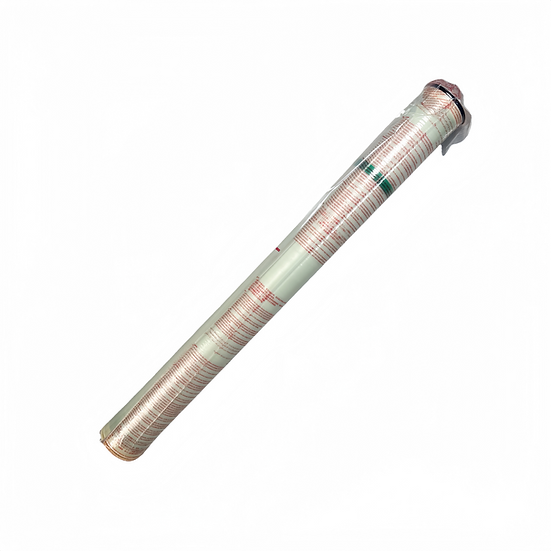

VONTRON SW4040LE Reverse Osmosis Sea Water Membrane 99.7%, 800psi.

The price doesn't include the shipping fee. Please message us before placing your order. Thank you!

Product Performance

Model :SW4040LE,    Active Membrane Area:  90ft²（8.4m²）,  Average Permeate Stable: 1600GPD（6.1m³/d) , Rejection Rate: 99.8 % .

1. Operating pressure 800 psi (5.52 MPa) 32000 mg/L NaCl solution Temperature at 25℃ pH 8 Recovery rate at 8%
2. Each membrane element may have ±20% variation of permeate flow.

Operating Conditions & Limits
Maximum operating pressure 1200 psi(8.28MPa)

Maximum feedwater temperature 45℃
Maximum inlet flow rate 3.6 m3/h

Maximum concentration of free chlorine 0.1 mg/L
Maximum pressure drop per element 15psi(0.1MPa)

Allowed 2-11 pH range for feedwater in operation
Allowed 1-13 pH range for chemical cleaning

Important information

• Before the membrane element leaves the factory, The dry membrane element has no preservation solution, The wet membrane element has 1.0% sodium bisulfite (in winter, add 10% of propylene glycol antifreeze) as the preservation solution for storage treatment and use vacuum packaging.
• Dry membrane elements should always be maintained wet after Soaking; when wet membrane elements are not used for a long time, a preservation solution is needed to soak the elements.
• When the membrane element is used for the first time, it is recommended to flush it first for 15-25 minutes at low pressure (not suitable for soaking or soaking overnight), and then
  flush it for 60-90 minutes at high pressure (the water flow should not be less than 50% of the system design water flow).
• The permeate water and concentrated water within the first hour of the initial operation of the membrane element should all be discharged.
• The operating limits and operational guidelines given in this technical information are part of the limitations of the three-year warranty on the membrane element.
• The addition of any chemicals that may affect the membrane element during storage and operation is prohibited, and Vontron Technology will not be liable for any consequences arising from the use of such chemicals.
• Please refer to the Product Manual for details on installation, commissioning, storage, and transportation of membrane elements.

Note!!!  This price does not include the shipping cost, please contact us to confirm the shipping fee before ordering.
